The Easiest Way To Extract XYZ Coordinates From DXF Files!
What is DXF Reader GT?
DXF Reader GT is the quickest way to convert, or extract, CAD style DXF drawings into a list of data points and objects. Once extracted data can be used to create XYZ files, data list, data points, or organize the data into a list of all points, objects and layers.
With DXF Reader GT you can read all of the data points inside a DXF in an XYZ format without using or having any experience in CAD!
How to extract data from DXF files

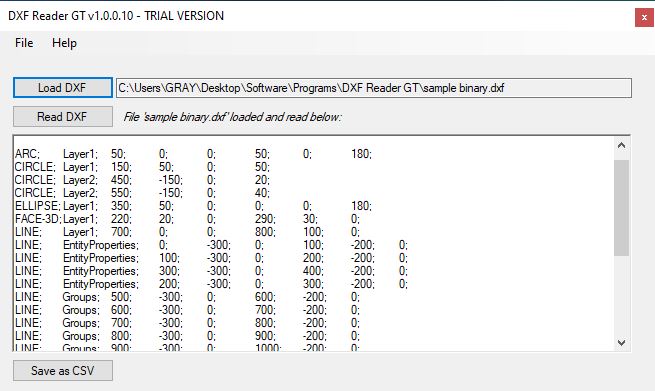

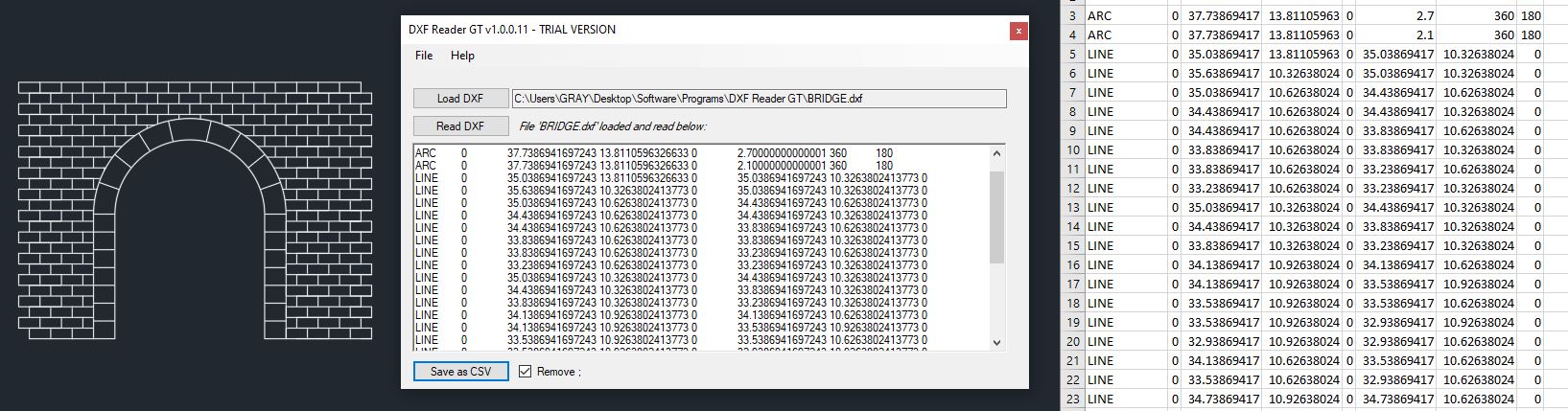

Simply load in your DXF file into DXF Reader GT and the program will produce an editable text block for you to view your data. The data can then be exported into either a TEXT file, CSV delimited, or (new to version 2) directly into an Excel tabbed data table with all of your objects, layers, data, text, shapes, and X Y Z values included. Version 2 will also have the ability to link with Excel Draw v6 and onward! Excel Draw version 6 will come with a copy of DXF Reader GT bundled with the product. If you have need of a DXF creator/viewer AND want it to all operate inside Excel, check out Excel Draw. More information about this below!
Why use DXF Reader GT?
It is true that other readers are available online, but DXF Reader GT offers something the others do not; The security of local, offline conversions. Other converters require you to upload your DXF document into their online database so it can be converted. Only after you upload your document is it converted, allowing you to download it after their servers process it. And most of the time, they only give you part of the data, not all of it.
Not only is DXF Reader GT secure, but it also gathers all data present in the Layer, X1, Y1, Z1, X2, Y2, Z2 fields. You can quickly gather your data without the need of AutoCAD or any other products.
DXF Reader GT is a stand-alone application that will pull X Y Z data points and object information directly from your CAD DXF files. It is so easy to use that even an CAD novice can retrieve XYZ data from a DXF drawing.
DXF Reader GT supports the following DXF formats:
- Basic DXF v1 Files *NEW
- AutoCad2000
- AutoCad2004
- AutoCad2007
- AutoCad2010
- AutoCad2013
- AutoCad2018 DXF database versions, in both text and binary format.
DXF Reader GT supports the following DXF objects:
- Arc
- Circle
- Ellipse
- Distance
- Measurement
- Face-3D
- Layers *NEW
- Line
- Point
- Ray
- Rectangles *NEW
- MText
- Text
- Windows OS
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- .NET Framework 4.5
Try the free trial today and see how much time you will save with such a simple application!
Version 2 has the ability to link with Excel Draw v6!
Every install of Excel Draw version 6 will come with a copy of DXF Reader GT bundled with the product.
If you have need of a DXF creator/viewer AND want it to all operate inside Excel, check out Excel Draw.
DXF Reader GT Purchase Options
License numbers are emailed only after purchase and are contained inside the email purchase receipt.
If you do not receive an email like this, directly following your purchase, please email our support at support@graytechnical.com .
License numbers are activated inside DXF Reader GT by going to Help and Activation.
Trial versions are limited to:
- Limited to 20 lines of conversion
- Lowest priority support
- Weekly update check
Choose this option if you only need DXF Reader GT for a limited time.
Single License option offer:
- 1 computer install
- High priority support
- Full conversion capabilities
- Free updates and upgrades
- 365 Day Full Activation
- Weekly Update Check
- Update request opportunity
Does not auto renew
$75 /Year
Choose this option if you would like a Perpetual License for your own personal use.
Single License option offer:
- 1 computer install
- High priority support
- Full conversion capabilities
- Free same version updates (v2)
- No time limit
- Weekly Update Check
- Update request opportunity
$125
Choose this option if you are purchasing this product for a small business or organization.
Perpetual Business License offer:
- 1 licenses for up to 10 computer installs
- Highest priority support
- Full conversion capabilities
- Free same version updates (v2)
- No time limit
- Weekly Update Check
- Update request opportunity
$800
Gray Technical is proud to support businesses by offering special Site License options. This option allows business owners and IT personnel to install an application as many times as needed with only one license. Please send us an email from your business issued email to our support (support@graytechnical.com) requesting a Site License for G-Drive Linker.
Create, View and Export CAD Drawings in Excel
DXF Reader GT is being offered as an integrated bundle with Excel Draw!
You can now get DXF Reader GT integrated for free with every purchased copy of Excel Draw! Excel Draw can create, view and display DXF drawings without any CAD applications. This means you can create, save or open your drawings and send them to anyone else without worrying if the receiver has an application to open the drawing. It is all contained inside Excel. As long as the user has an Excel application (2007+) then they can open and view your document!
Want to install DXF Reader GT across all your machines?
We offer a Site License just for that!
Just send us an email asking for a quote: support@graytechnical.com
Our license models operate on a ‘by version’ classification, where an older version license cannot activate a newer version, but a newer version can activate and older version. If you are in need of older version, please see the selection to the right.
DXF Reader GT v1.0.1.6 : https://www.graytechnical.com/download/30152/
